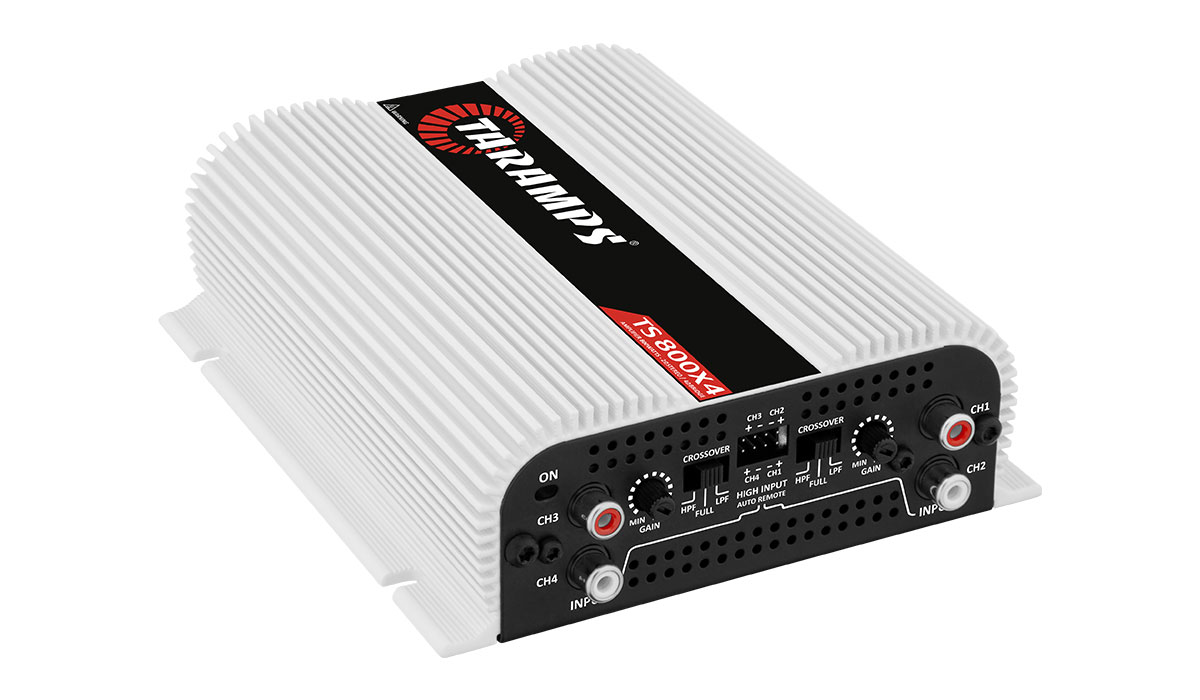

TS 800X4 – 2 OHMS

Class D Taramps Amplifier (4 Channels of 200 Watts RMS)

Description

It is public knowledge that the demand for amplifiers suitable for factory radios and Multimedia is growing every day.
With that in mind, we created the new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters.
With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers and super tweeters.

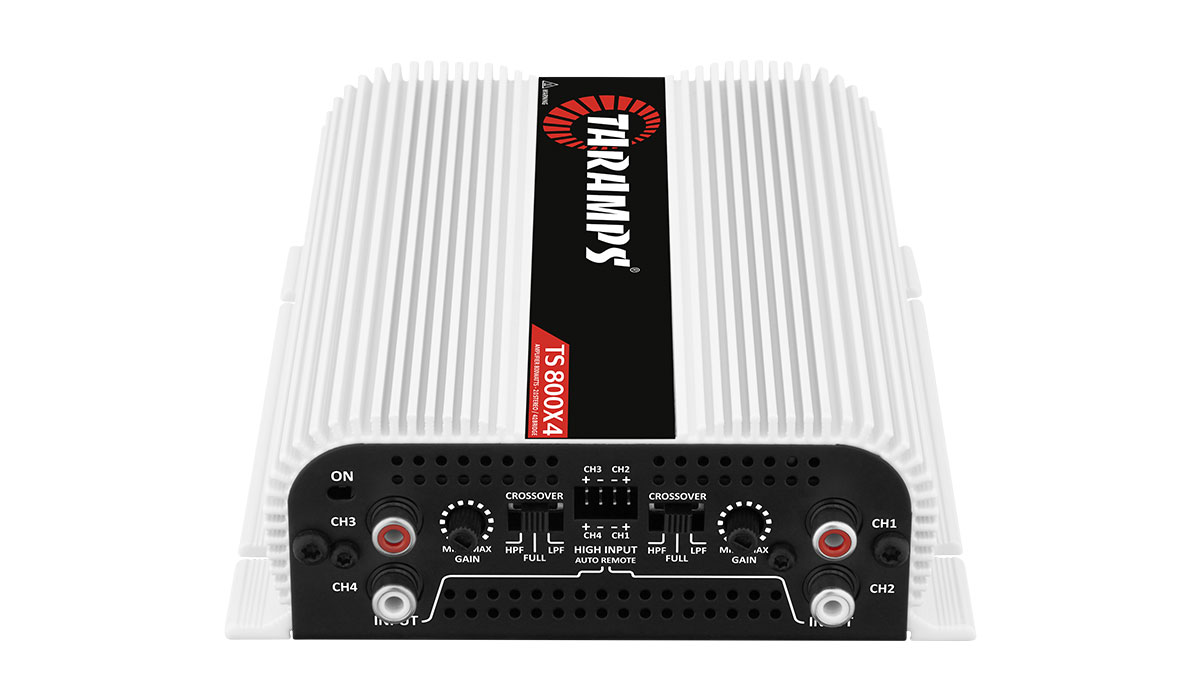

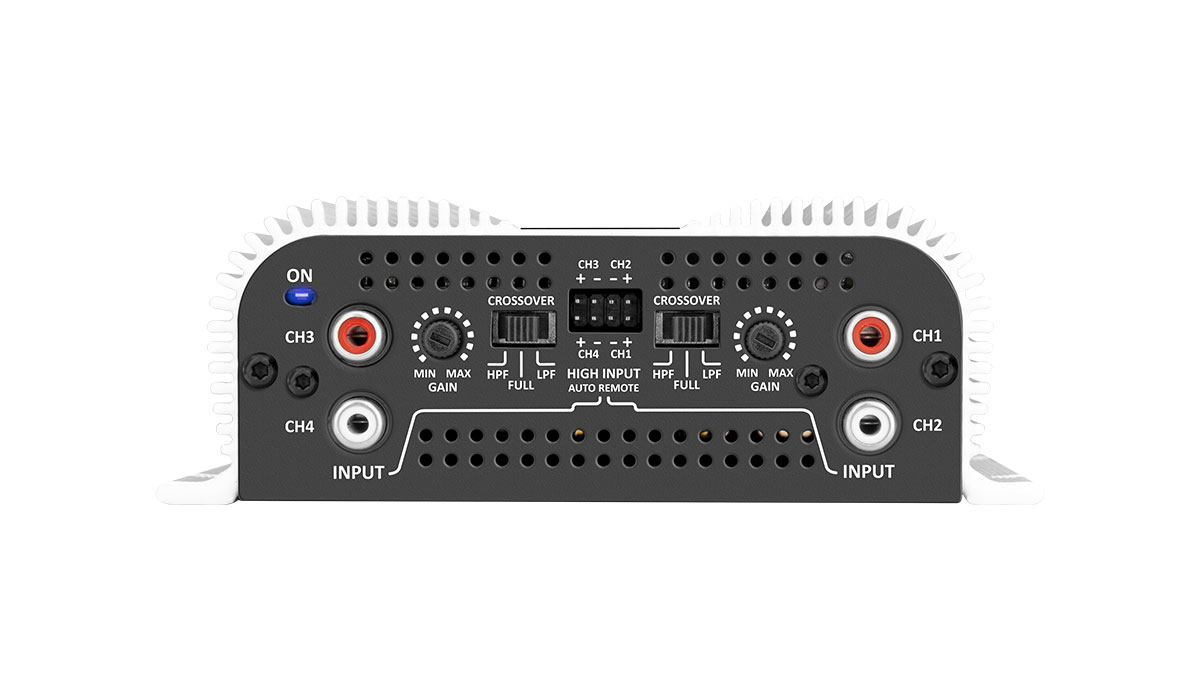

In addition, it has the traditional RCA inputs, gain adjustment and fixed Crossover (HPF, LPF and Full), typical feature of Taramps products.

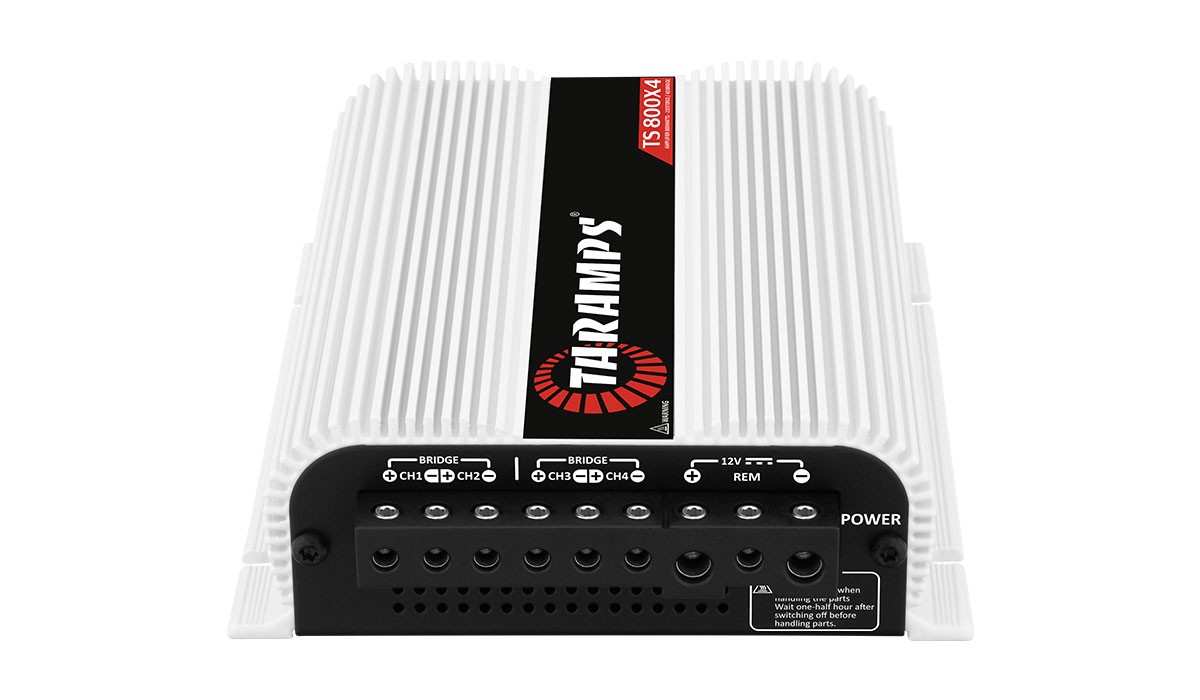

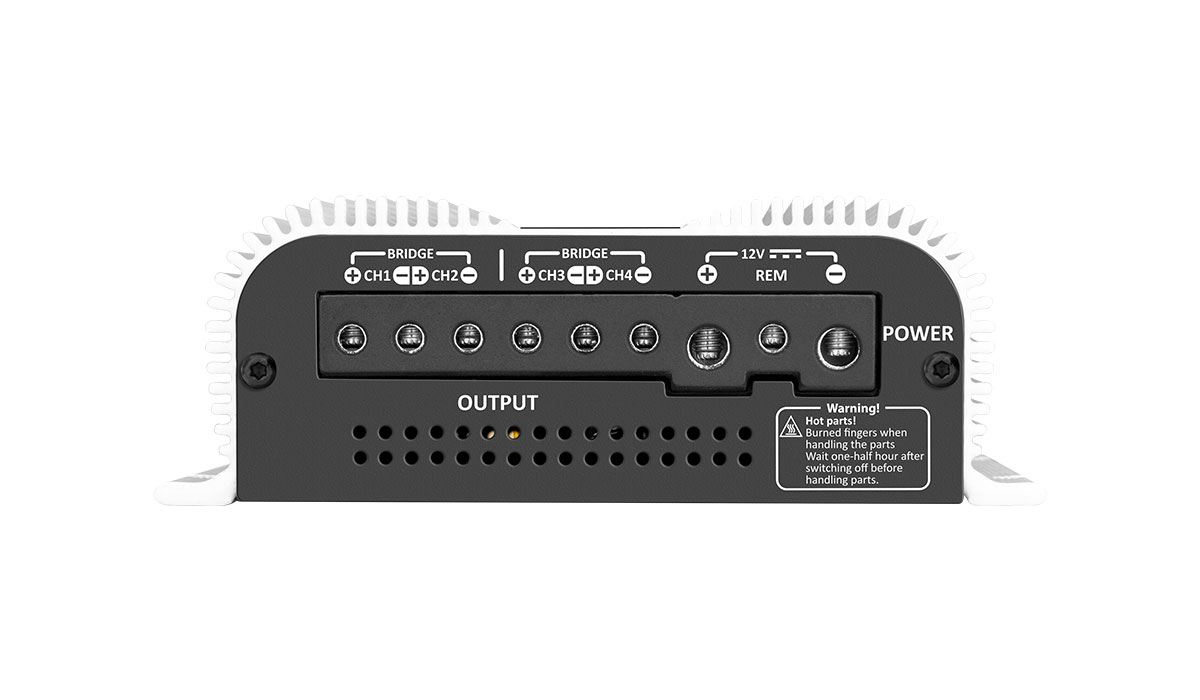

Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.
All this and much more, so that your pleasure in listening to music is even greater.

Product videos

https://www.youtube.com/watch?v=fAGpzmxU2dk&feature=youtu.be

Technical information
2 Ohms VERSION Nominal Power @14.4VDC
2 Ohms: 800W RMS (4 x 200W RMS)
4 Ohms: 544W RMS (4 x 136W RMS)

2 Bridged Channels
4 Ohms: 800 W RMS (2 x 400W RMS)
Number of Channels 04
Input Sensitivity (RCA): 4V (min.) / 250mV (max.)
(WIRE): >10V (min.) / 3V (max.)
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed
Input Impedance 10K Ohms (RCA)
Output Impedance 2 Ohms
protection system Output Short Circuit
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 0.9A
Maximum music consumption 38A
Maximum consumption in sinusoidal signal 76A
Dimensions (WxHxD) 5.43" x 1.89" x 6.89" (138 x 48 x 175mm)
Weight 1.91lb (0.87Kg)
EAN 7898556849043
