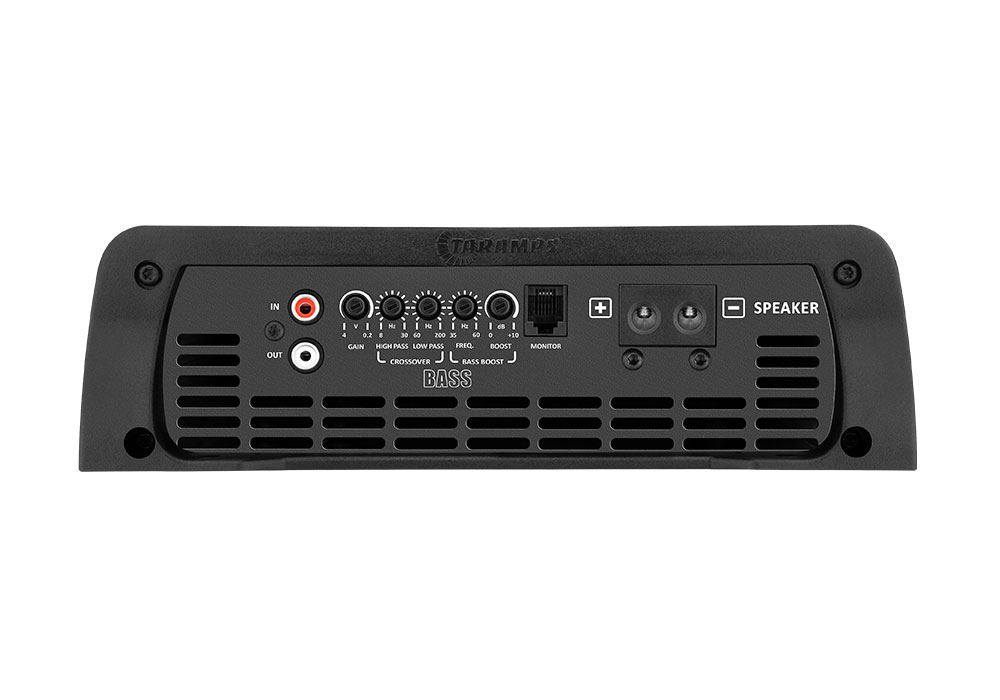

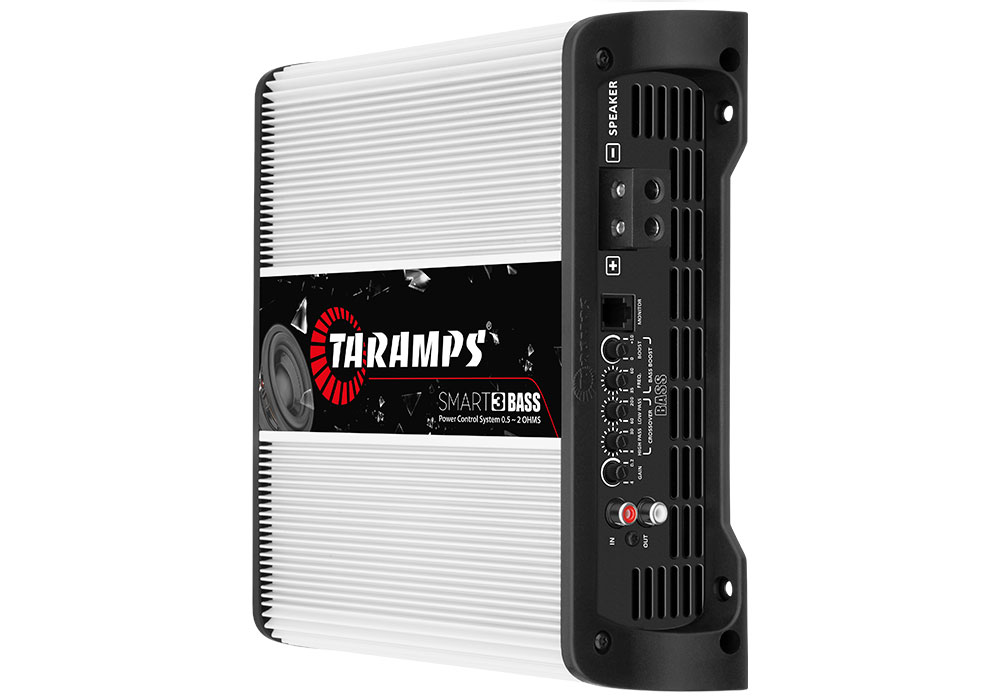

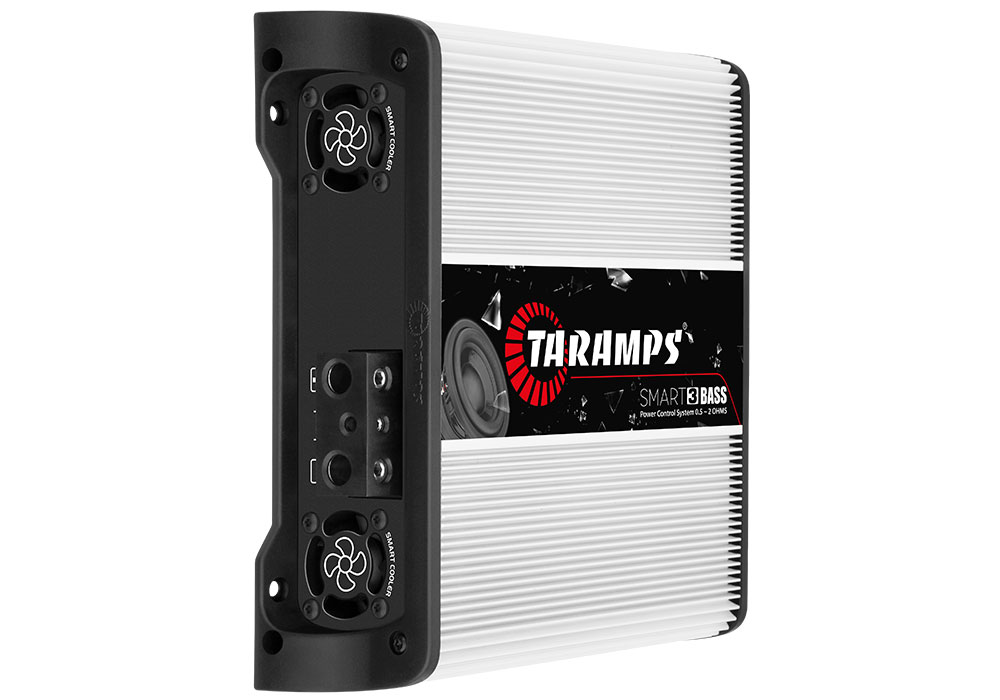

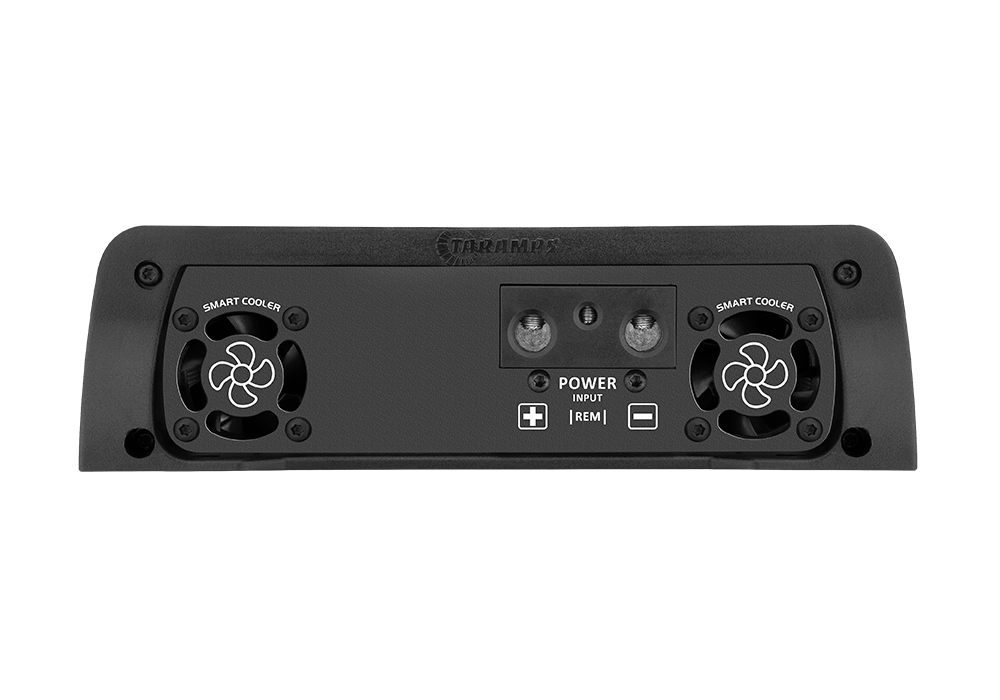

The Smart 3 BASS is another innovation from Taramps for car audio systems. Its exclusive Power Control System technology is designed for subwoofers, ensuring high quality at low frequencies while monitoring the amplifier’s operation. This multi-impedance, single-channel amplifier delivers 3000 WRMS at any impedance between 0.5 and 2 ohms. It features a familiar logo, a robust power input for cables up to 1 AWG (50mm²), and an output for a CLIP monitor. Experience something new with Taramps!
| Number of Channels | 01 |
|---|---|
| Maximum power | Nominal Power @14,4VDC 0.5 Ohm: 3000W RMS 1 Ohm: 3000W RMS 2 Ohms: 3000W RMS 4 Ohms: 1700W RMS |
| Input Sensitivity | 4V ~ 0.2V |
| Signal to Noise Ratio | >90dB |
| Frequency Response | 8Hz ~ 200Hz (-3dB) |
| Crossover high pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 60Hz ~ 200Hz (-12dB/8ª) Variable |
| bass boost | Freq.: 35Hz ~ 60Hz Boost: 0 ~ +10dB |
| Efficiency | 75% |
| Input Impedance | 10K Ohms |
| Output Impedance | 0.5 ~2 Ohms |
| protection system | Output short-circuit low/high supply voltage thermal protection |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption at rest | 1.10A |
| Maximum music consumption | 190A |
| Maximum consumption in sinusoidal signal | 278A |
| Dimensions (WxHxD) | 9.37" x 2.80" x 9.45" (238 x 71 x 240mm) |
| Weight | 6.60lb (3Kg) |
| EAN | 7898556847414 |
