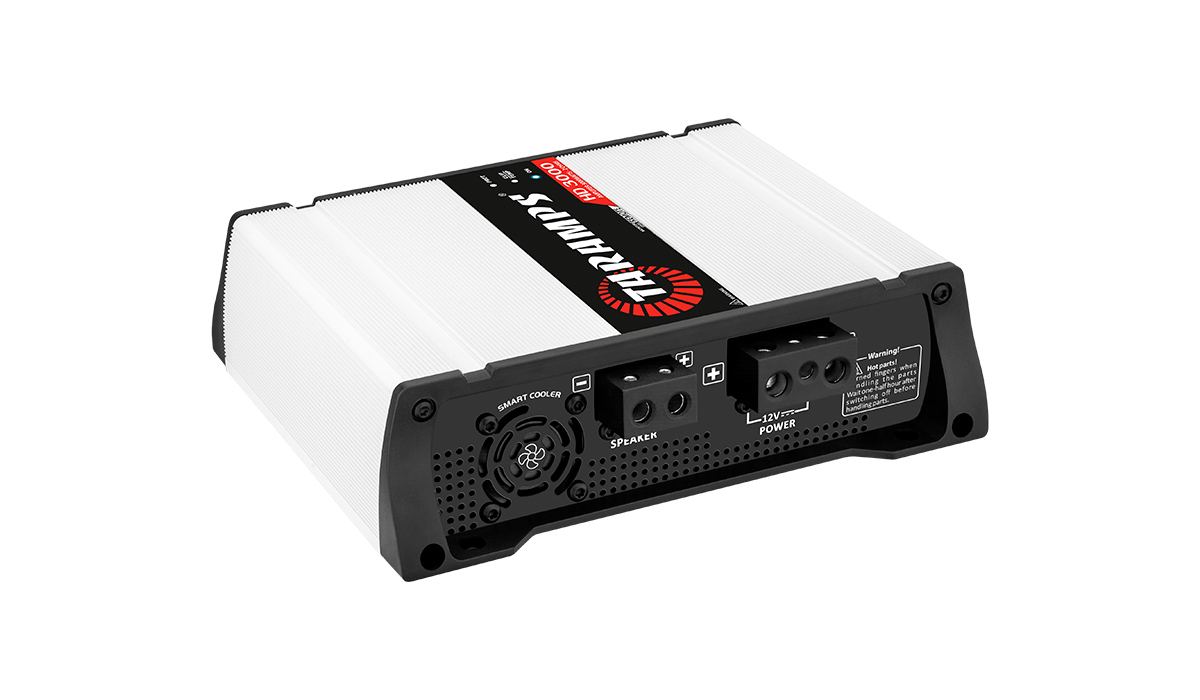

Introducing the HD 3000 1 ohm, an amplifier that maintains the tradition and quality of one of Taramps’ most renowned lines, now available in white and black versions. With a modern and impressive design, the HD 3000 combines power, versatility and style to transform your sound system into a true sound experience.
With 3000 WRMS at 12.6VDC in 1, 2 or 4 Ohm versions, offers a wide frequency response, being ideal for subwoofers, bass, mid-bass, mid-range, 6×9″ full range speakers, phenolic drivers, titanium drivers, super tweeters and much more. It can be used in internal car audio systems, trunk speaker boxes, stunt walls, three-way speaker boxes, home speakers boxes, among other creative projects.

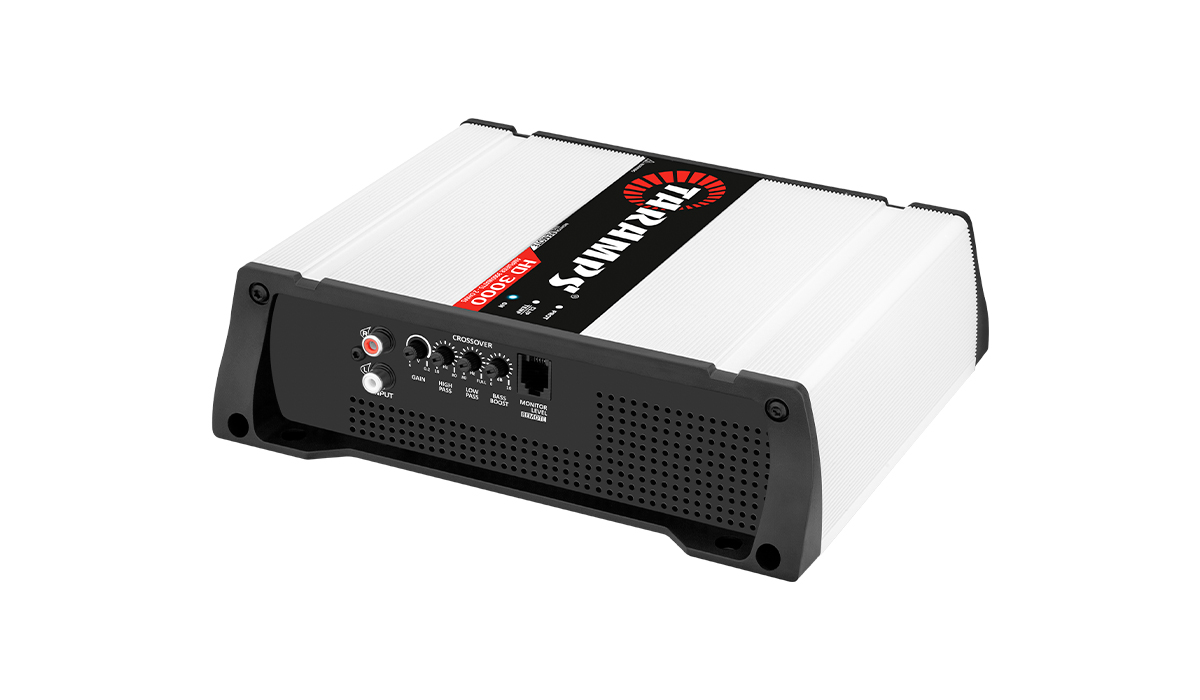

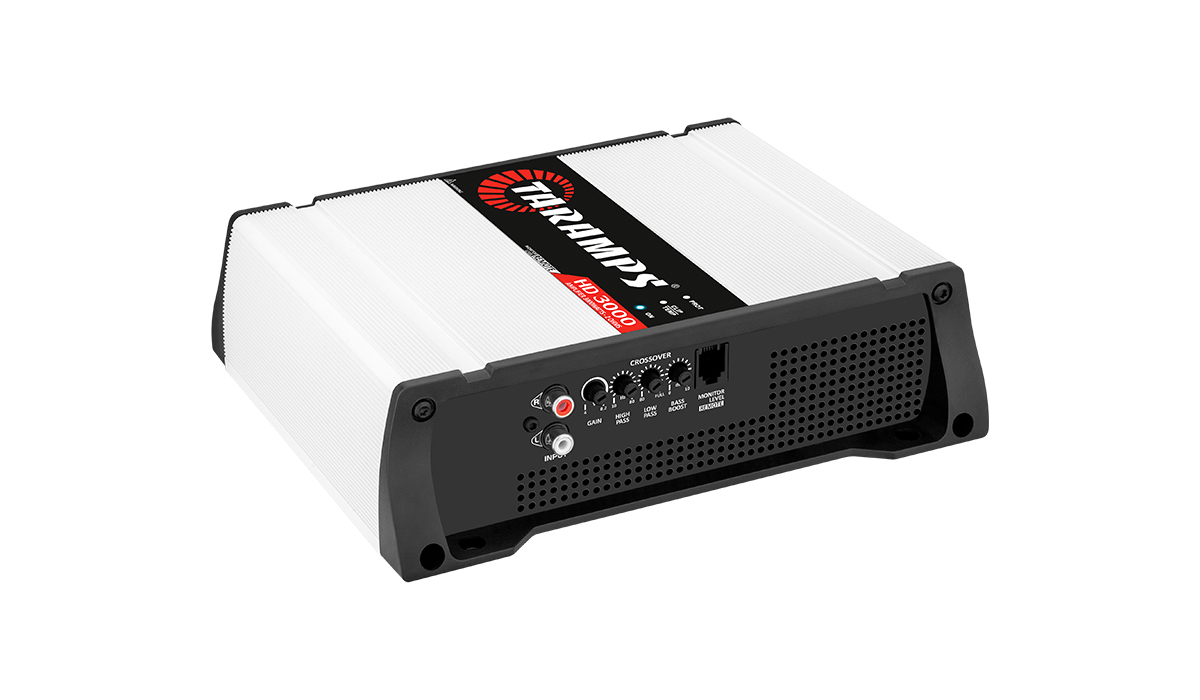

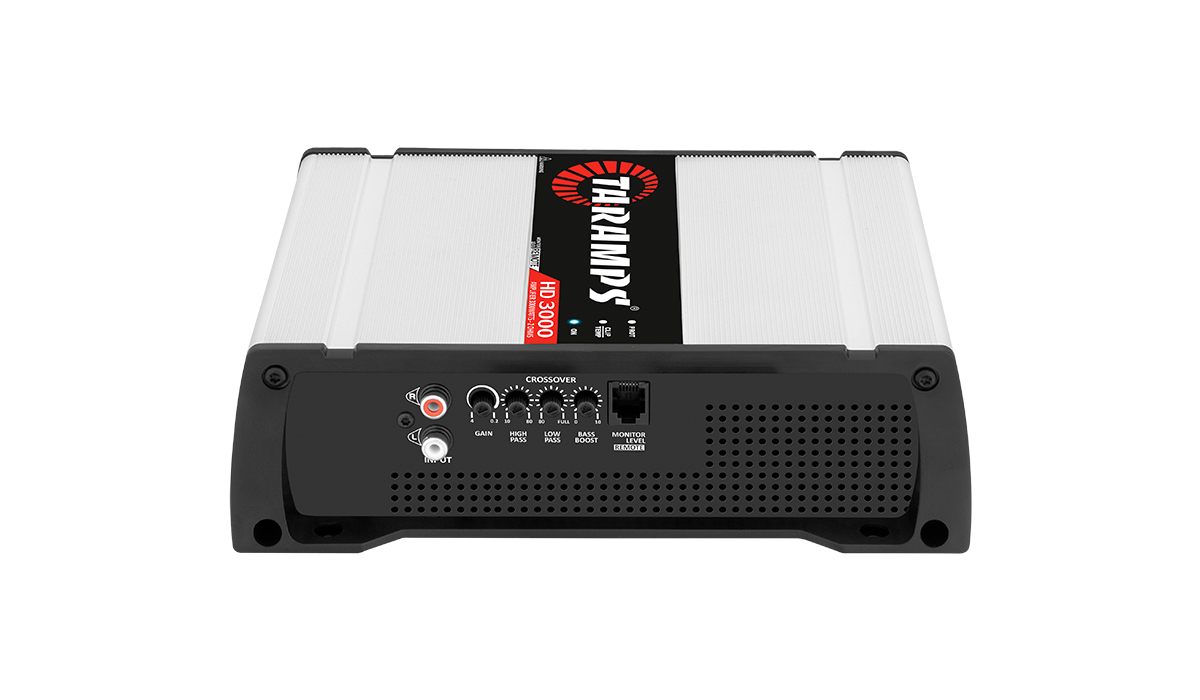

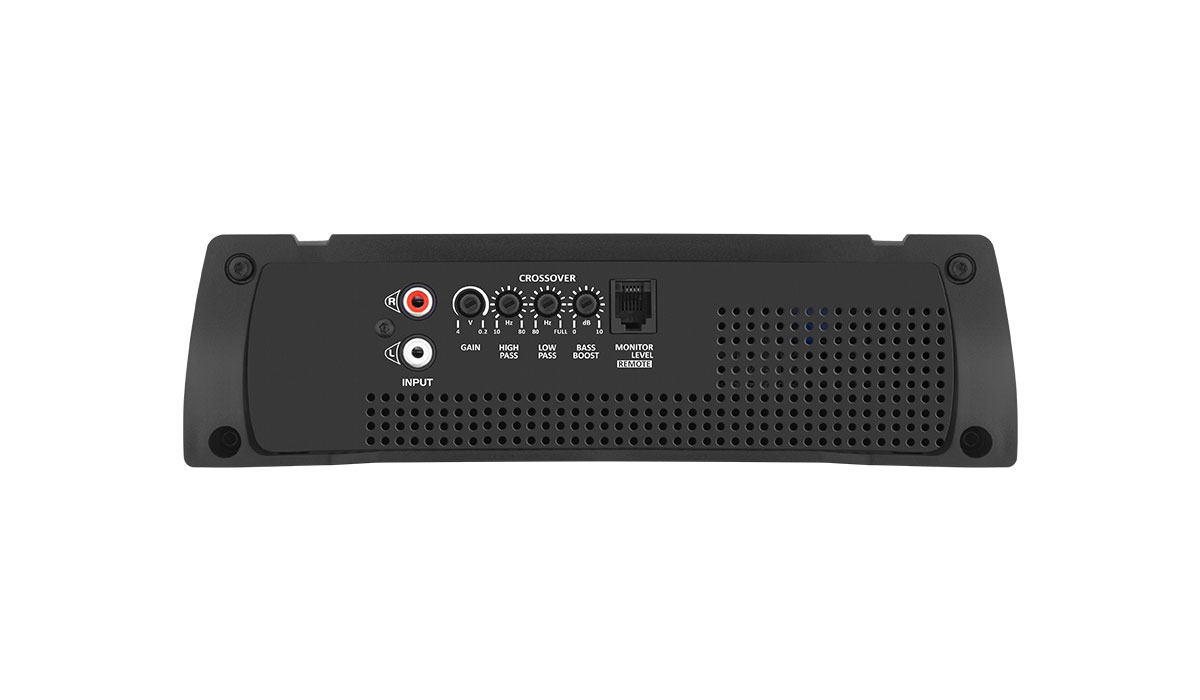

The HD 3000 has gain adjustment (0.2 to 4V), Crossover (HPF and LPF) and Bass Boost adjustments, allowing precise sound adjustment and bass reinforcement. The On, Clip and Protection indicator LEDs are accompanied by the M1 LED monitor, an exclusive accessory that comes bundled with the product, offering complete visual control over the amplifier’s operation.
The HD 3000 is also compatible with the Monitor Level Remote accessory (sold separately), providing practical and real-time control of the amplifier’s volume, in addition to indicating operating conditions, through the integrated LEDs: On, Clip and Protection.
2 Ohms VERSION | Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: 3000W RMS 4 Ohms: 2025W RMS 8 Ohms: N/A |
---|---|
Number of Channels | 01 |
Maximum power | (PT) |
Input Sensitivity | 0.22V ~ 4V |
Signal to Noise Ratio | >89dB |
Frequency Response | 10Hz ~ 20KHz (-3dB) |
Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
Crossover low pass (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
bass boost | 0 ~ 10dB (50Hz) |
Input Impedance | 10K Ohms |
Output Impedance | 2 Ohms |
protection system | Output Short-Circuit, High or Low Supply Voltage, Thermal Protection |
Minimum Supply Voltage | 9VDC |
Maximum Supply Voltage | 16VDC |
Consumption at rest | 1.6A |
Maximum music consumption | 152A |
Maximum consumption in sinusoidal signal | 304A |
Dimensions (WxHxD) | 9" x 2.56" x 7.32" (229 x 65 x 186 mm) |
Weight | 4.96 lb (2.25Kg) |
EAN | White: 7898556840880 Black: 7908706602630 |
