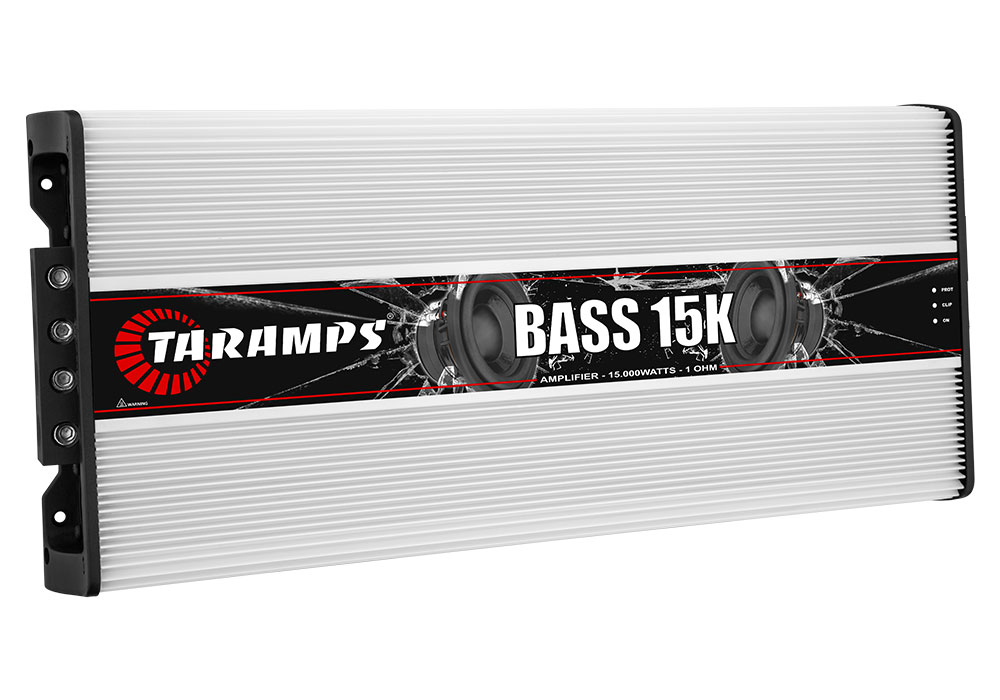

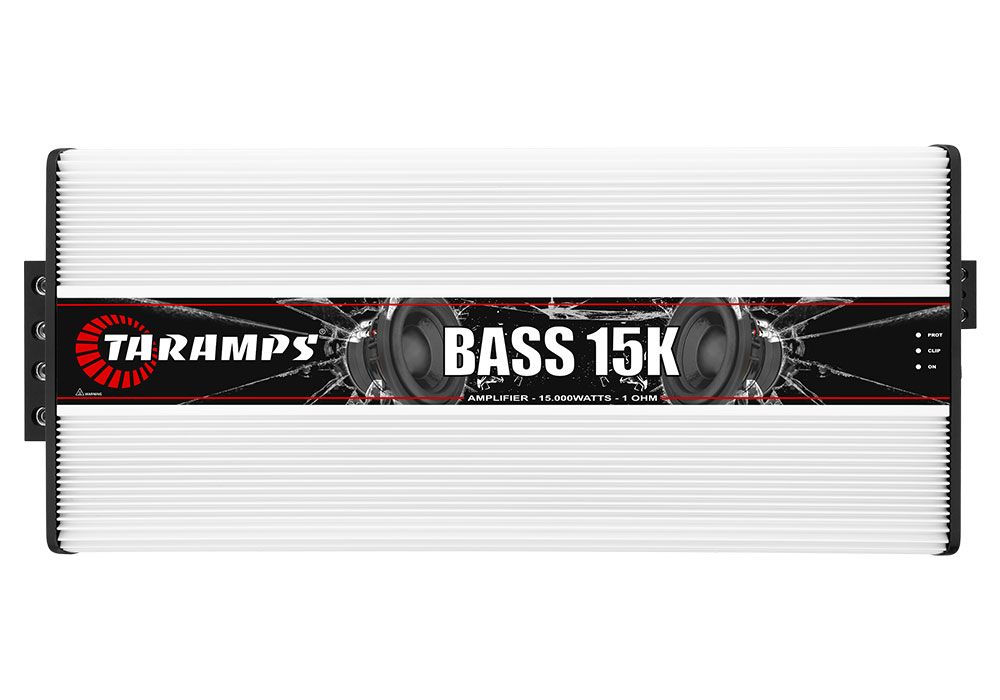

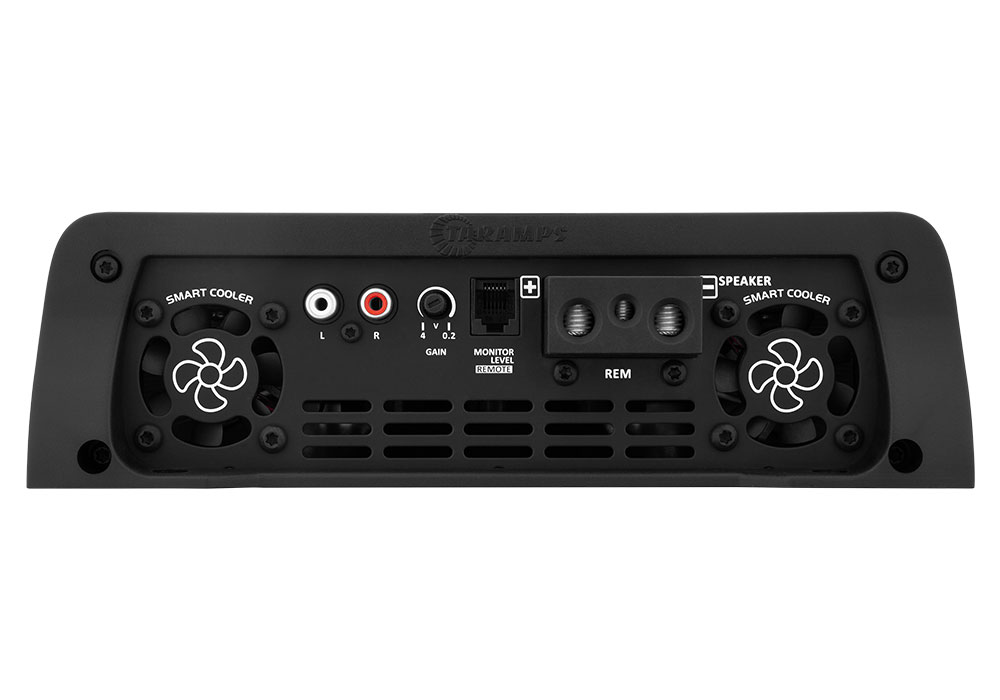

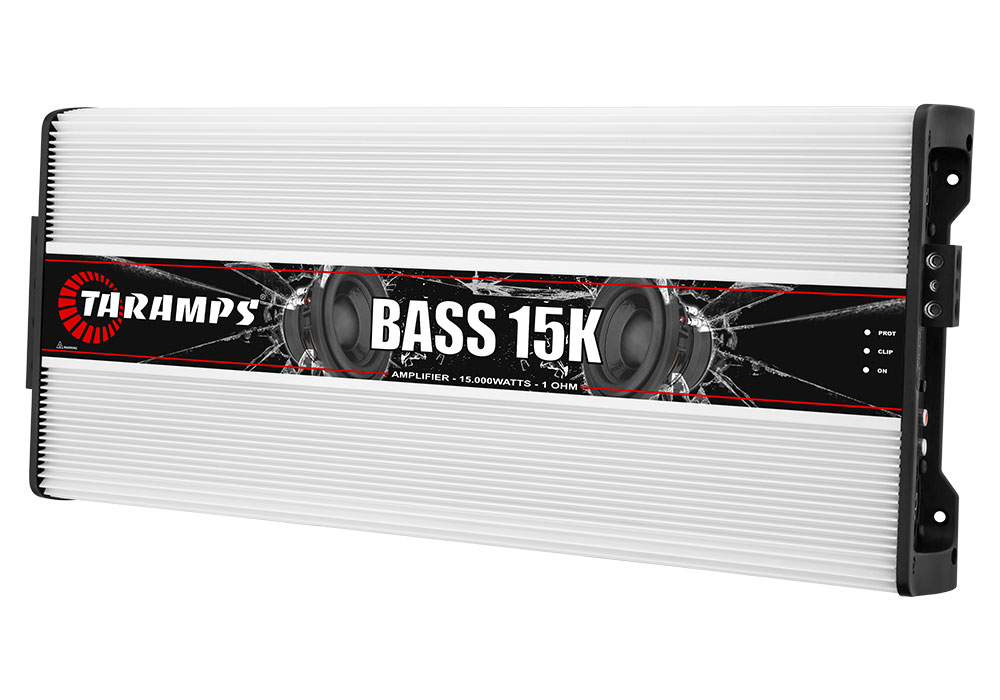

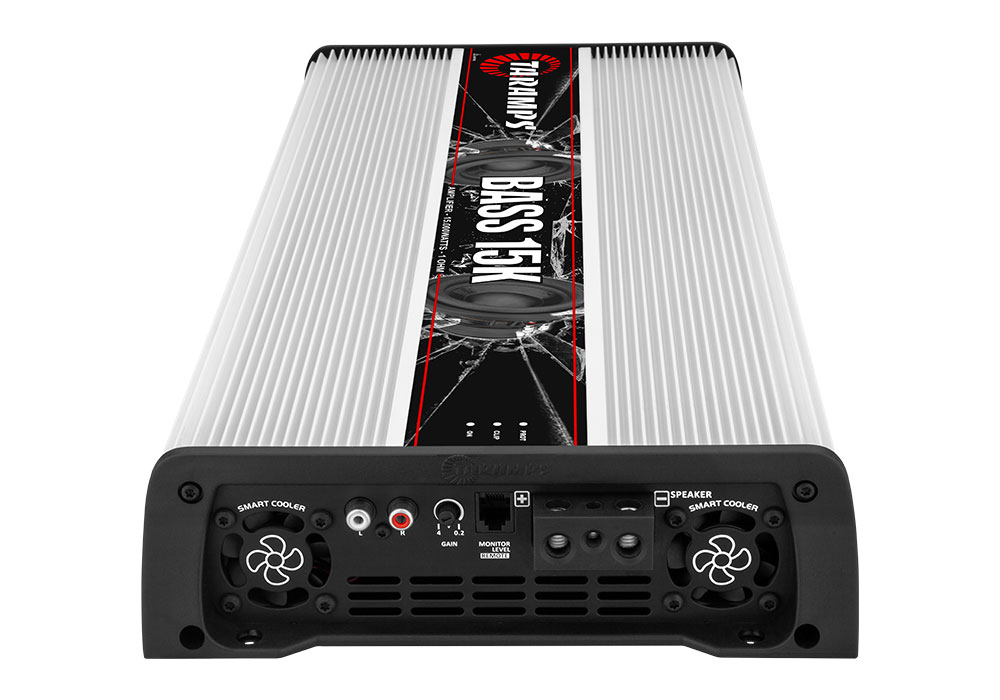

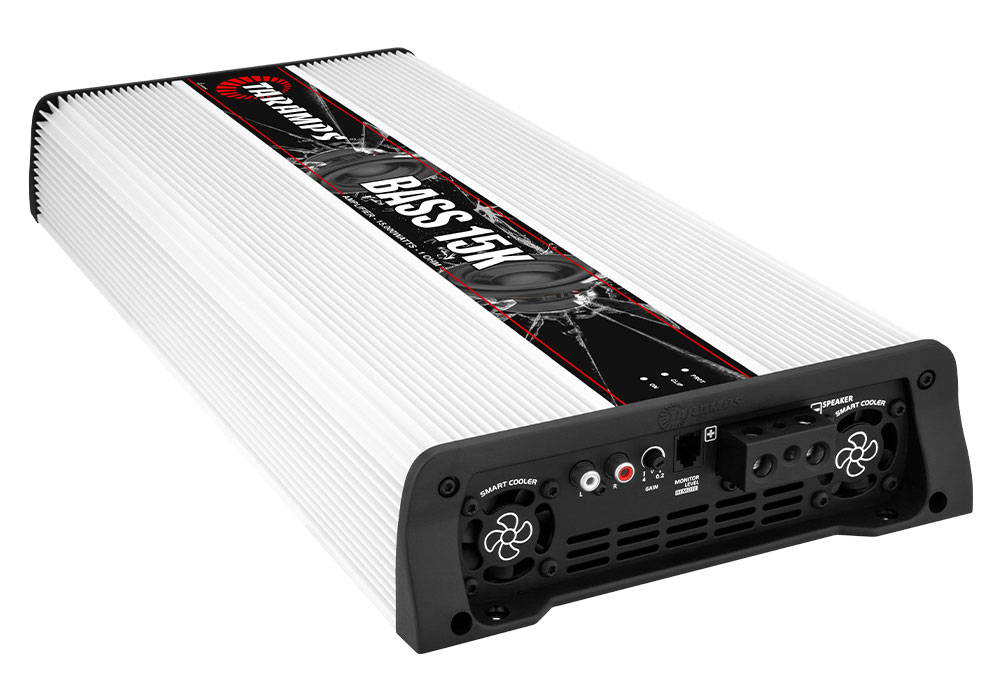

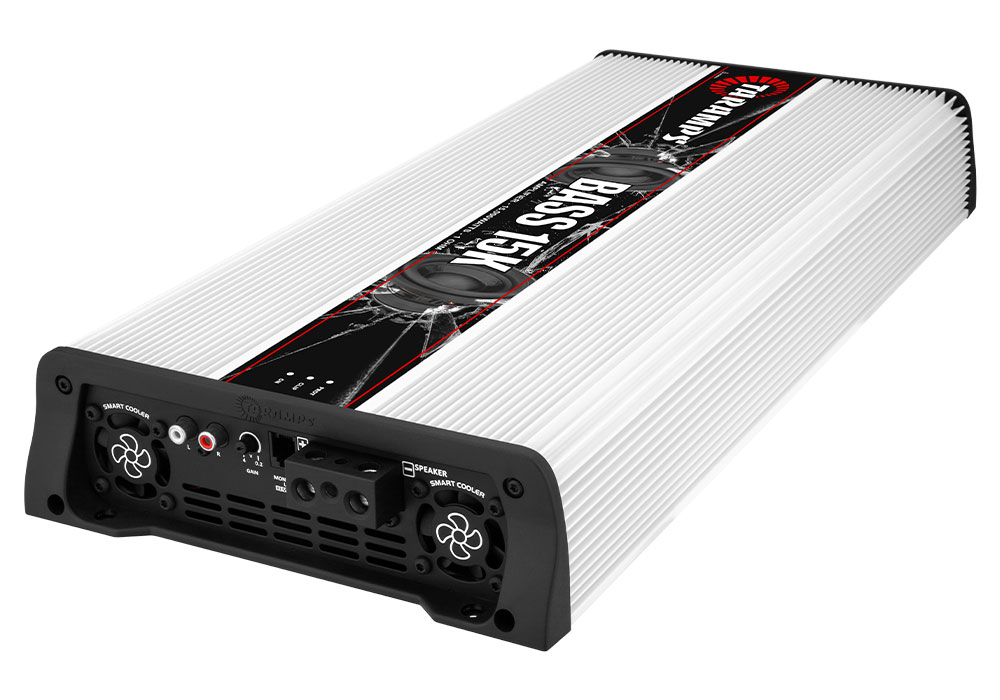

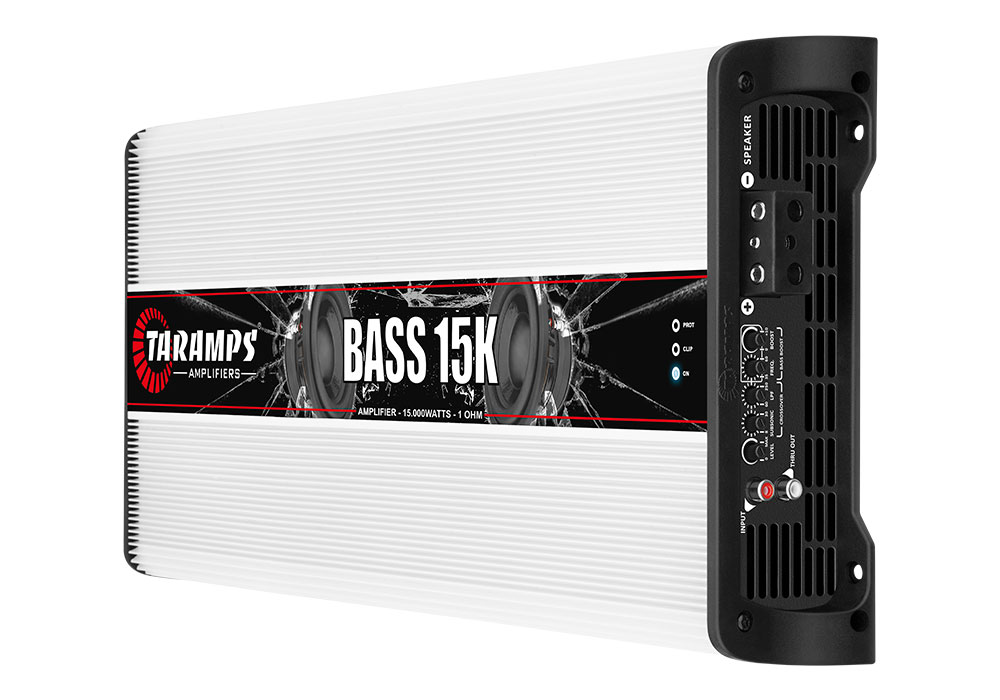

The BASS 15K amplifier module is the perfect choice for those looking for power and precision in sub-bass and bass frequencies. With an impressive 15,000 W RMS in the 1 Ohm version, it offers a frequency response from 5 Hz to 200 Hz, ideal for maximizing the performance of your subwoofers. Equipped with RCA audio inputs and gain adjustment (0.2 to 4V), the BASS 15K is compatible with most players on the market, ensuring versatile use.

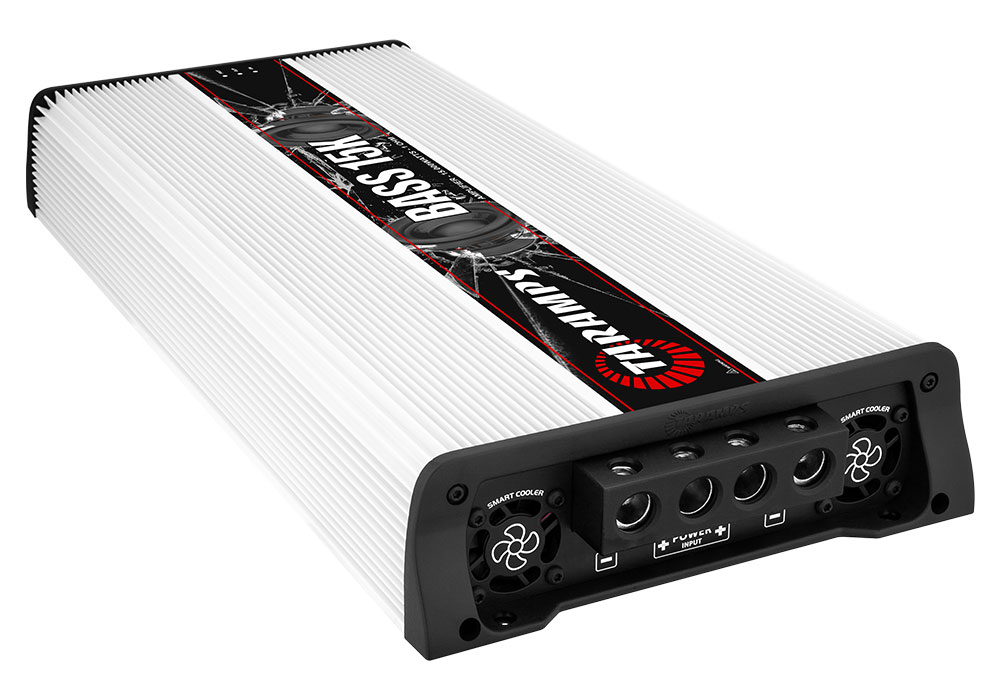

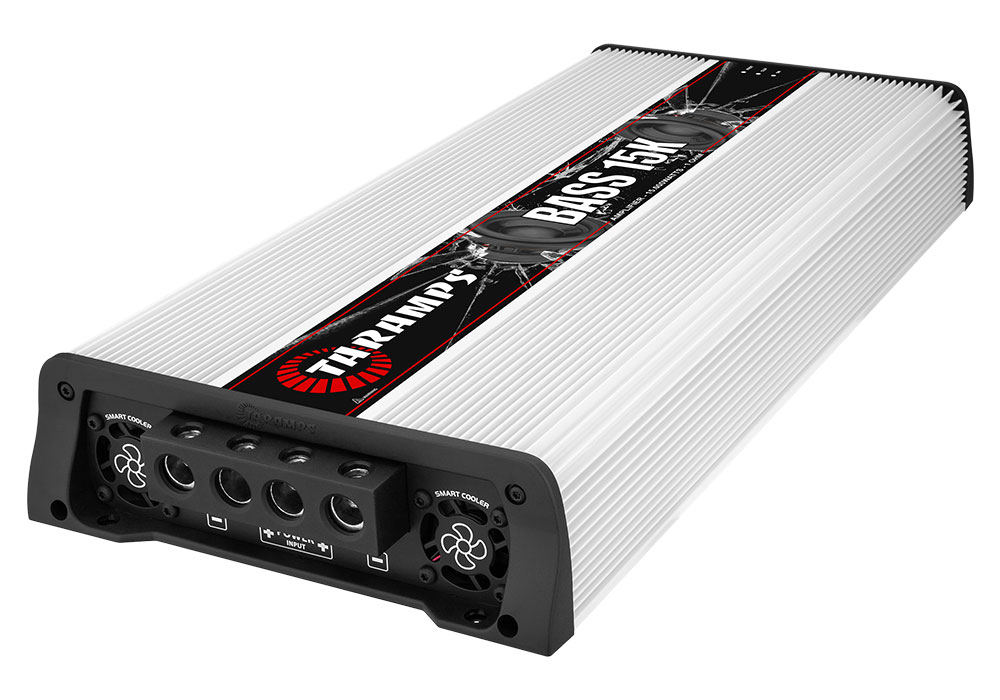

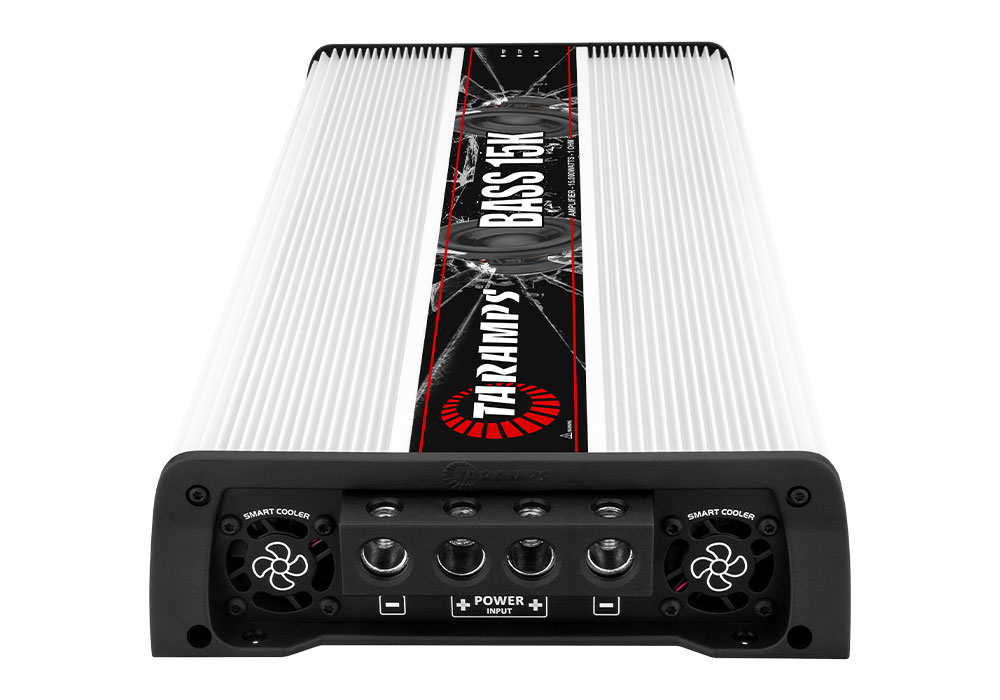

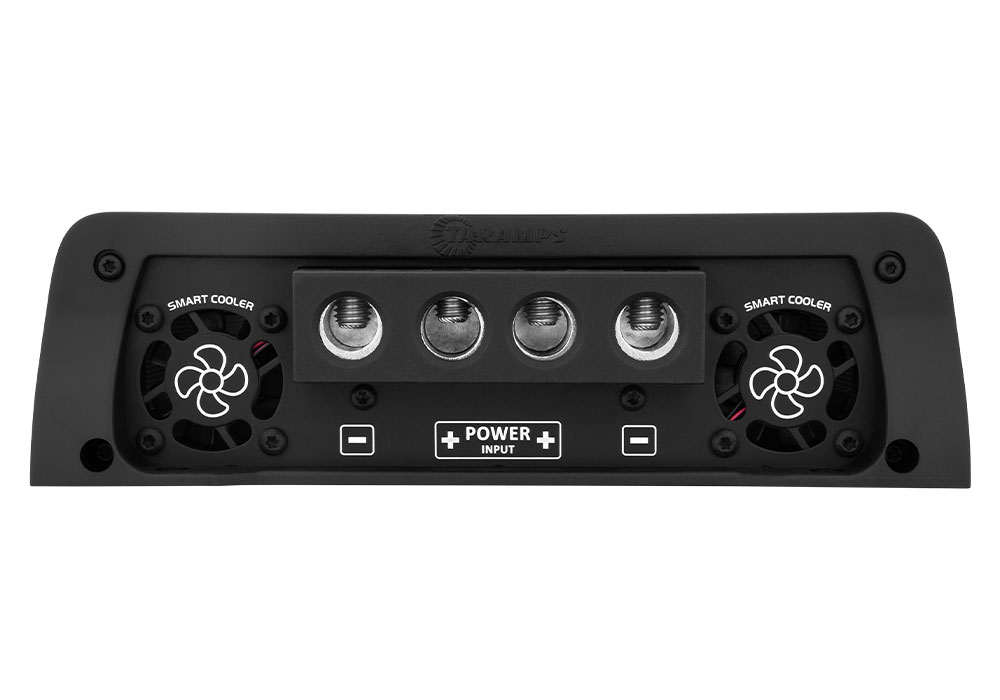

Its robust construction, featuring an aluminum chassis and four Smart Coolers, ensures excellent heat dissipation, keeping the amplifier operating quietly and efficiently. Additionally, it comes with the Monitor Level Remote accessory, which provides practical and real-time volume control directly from your vehicle’s dashboard. This control includes integrated LEDs (On, Clip, and Protection) for complete monitoring of operational conditions.
| Operation class | Class D |
|---|---|
| Minimum Output Impedance | 1 ohm |
| Number of Channels | 01 |
| Maximum power | @ 14.4 VDC - 1 OHM: 15000 W RMS @ 14.4 VDC - 2 OHMS: 8505 W RMS |
| Input Sensitivity | 280mV |
| Signal to Noise Ratio | >95dB |
| Frequency Response | 8Hz - 250Hz (-3dB) |
| Crossover high pass (HPF) | 8Hz to 30Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 60Hz to 250Hz (-12dB/8ª) Variable |
| bass boost | Parametric, Freq.: 35 to 60Hz / Boost: 0 ~ +12dB |
| Efficiency | 80% |
| Input Impedance | 22K Ohms |
| protection system | Output Short / Short on output relative to GND / High and Low Power Supply and Thermal protection |
| Minimum Supply Voltage | 9 VDC |
| Maximum Supply Voltage | 17 VDC |
| Consumption at rest | 400mA |
| Maximum music consumption | 651A |
| Maximum consumption in sinusoidal signal | 1302A |
| Dimensions (WxHxD) | 9.37" x 2.79" x 21.42" (238 x 71 x 544mm) |
| Weight | 21.34lb (9,70Kg) |
| EAN | 7898556844116 |
